Paging Transmitters-POCSAG
| Paging Transmitters-POCSAG |
Brief Detailed |
Versatile Paging Transmitter
The Fusion™ INTELPage IP™ is a state-of-the-art IP paging transmitter that meets the specific needs of the modern paging industry. INTELPage IP is fully compatible for operation, through IP/Ethernet connectivity, with the Fusion Event Management Module™ (EMM) and Amcom Messenger™. In combination with these solutions, the INTELPage IP transmitter ensures messages are dispatched in an accurate and timely manner to communication devices such as pagers and LED signs.

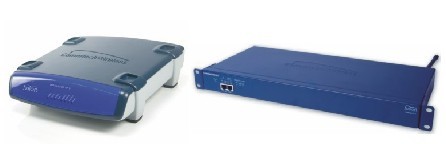

The INTELPage IP is available in a 19” rack-mount design or stackable plastic enclosure (5 Watt only). The INTELPage IP comes in 5W, 25W, 50W and 100W options to support various coverage requirements and is available in all standard UHF and VHF frequencies.
Event Management module(EMM)
Telemetry Relay module(TRM)
LED Signs
Amcom Messenger
Fusion Series INTEL Page IP
Pagers
Technical Specifications
|
Equipment Type
|
Non Return to Zero IP and Serial Based POCSAG Encoder
|
|
Power Supply
|
110-240VAC 50/60Hz (Autosensing)
|
|
Frequency Range
|
VHF – 148-174 MHz Synthesized
UHF – 440-470 MHz Synthesized
|
|
External Connectors
|
Serial: RS232C, 300-57600 Baud, RJ45F
Ethernet: IEEE 802.3, 10 Base-T, RJ45
|
|
Status LEDs
|
Power, Busy, PTT, Data,
RS232 Tx, RS232 Rx, IP Activity, IP Link
|
|
Programming
|
Via Terminal or Web Browser
|
|
Pager Database
|
1000 Pager IDs
|
|
Supported Input Protocols
|
TAP (PET, IXO) / COMP1, 2 / SCOPE /
TNPP / Terminal / Tekk (Waveware)
|
|
Supported Output Protocols
|
POCSAG 512, 1200 or 2400bps
|
|
Channel Spacing
|
12.5 kHz (Narrow) & 25 kHz (Wide)
|
|
Dimensions
|
5W Plastic – 255 x 230 x 70 mm (10 x 8 x 2.7 inches)
5W Rack – Standard 19” Rack Case
439 x 205 x 44 mm (17.3 x 8.1 x 1.7 inches) Minus Rack Ears
25/50/100W Rack – Standard 2RU 19” Rack Case 439 x 430 x 88 mm (19 x 16.5 x 3.4 inches) Minus Rack Ears
|
|
Weight
|
5W Plastic – 0.7kg / 1.5lb Net
5W Rack – 2.7kg / 5.9lb Net
25W Rack – 7.0kg / 15.4 lb Net
50W Rack – 9.5kg / 21.0 lb Net
100W Rack – 9.5kg / 21.0 lb Net
|
|
Operating Temperature
|
0 °C to 50 °C (32 °F to 122 °F)
(20-90% RH Non-Condensing)
|
|
Storage Temperature
|
-10 °C - 60 °C (14 °F - 140 °F) (10-95% RH Non-condensing)
|
|
Approvals
|
FCC, CE, C-tick, ROHS, IC, EN60950, IDA, CB (depending on model)
|
|
|
