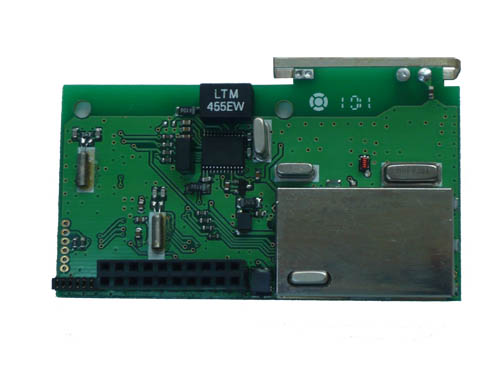

FLEX RF RECEIVER SPECIFICATION
TCXO Synthesizer Version
Version 1.0
|
|
Frequency Range
|
928-932MHz Bands
|
|
Channel Spacing
|
25KHz and 20KHz
|
|
Signal Format
|
Compatible with Motorola-FLEX Paging Protocol
G.1.8 version
|
|
Data Transmission Rate
|
1600bps or 3200bps or 6400bps
|
|
Modulation System
|
Carrier frequency shift keying (NRZ)
|
|
Frequency Deviation
|
±4.8KHZ
|
|
Receiving Sensitivity
|
1600bps 8uV/m, 3200bps 10uV/m, 6400bps 12Uv/m
|
|
Selectivity
|
40dB (928-932MHz)
|
|
Spurious Rejection
|
More than 50dB
|
|
Image Rejection
|
35dB (928-932MHz)
|
|
Frequency Stability
|
±2.5ppm (928-932MHz)
|
|
Tone Alert Output
|
N/A
|
|
Operating Voltage
|
1.5V and 3.0V
|
|
Operating Temp. Humidity
|
-20°C to 60°C, 95% (at 40°C)
|
|
Storing Temp. Humidity
|
-30°C to 70°C, 95% (at 40°C)
|
|
