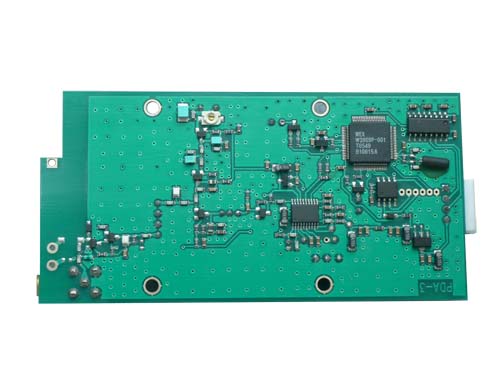

W2004R (UHF Receiver board)
W2004R (UHF Receiver board)
Brief Detailed
UHF receiver
Model: W2004R
SPECIFICATIONS                                          (Version 1.0)

Frequency
821.2375MHz

Channel Spacing
25KHz

Signal Format
POCSAG

Data Transmission Rate
512bps or 1200bps or 2400bps

Modulation System
Carrier frequency shift keying (NRZ)

Frequency Deviation
±4.5KHz

Receiving Sensitivity
-122dBm (Min)

Selectivity
60dB ±25KHz

Image rejection
45dB

Spurious Rejection
50dB

Frequency Stability
±3ppm

Operating Current
16mA

Operating Voltage
+5.0V

Operating Temp. Humidity
-10 to 40, 95% (at 40)

RF input
Data output
Storing Temp. Humidity
50 OHM (SMA)
RS232
-10 to 70, 95% (at 40)
RS232 FORMAT

Baudrate :
1200 BPS

Data bit :
8 bit

Stop bit :
1 stop

No check bit
